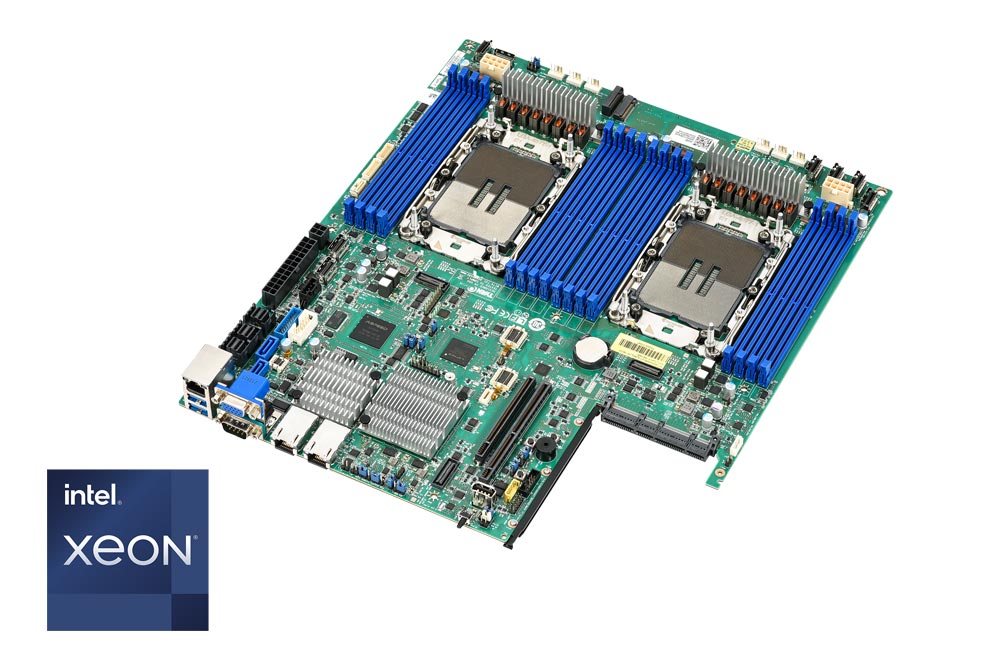

S7136
Rack optimized 2S Server Board
- 2S Intel Emerald Rapids / Sapphire Rapids CPU
- Spread core 12" x 14" with proprietary mounting holes
- 16 DIMM slots with DDR5-4800 memory support
- 2 PCIe 5.0 riser slots with up to 52 lanes
- PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot
- 8 MCIO 4x conn. (NVMe)
- 2 NVMe M.2 2280 slots
- 1 dedicate 1000Base-T IPMI ports
- AST2600 BMC with IPMI 2.0& Redfish support
| Processor Brand | CPUs | CPU Type | DIMM Slots | PCIe Slots |
|---|---|---|---|---|
| S7136GM2NRE-2T* | 2 | 5th/4th Gen Intel Xeon Scalable Processors | 16 | 2 |
| S7136GMRE* | 2 | 5th/4th Gen Intel Xeon Scalable Processors | 16 | 2 |
Specifications
Motherboard
- Board Dimension (W x L)
- Prop. 12.16" x 14.18" (308.8 x 360.2mm)
Processor
- Q'ty / Socket Type
- (2) Intel Socket LGA4677
- Supported CPU Series
- 5th/4th Gen Intel Xeon Scalable Processors
- Thermal Design Power Wattage
- Max up to 350W (TDP)
Memory
- Supported DIMM Qty
- (8+8) DIMM slots
- DIMM Type / Speed
- RDIMM DDR5 5600 MT/s (5th Gen Xeon w/ 1DPC) RDIMM DDR5 4800 MT/s (4th Gen Xeon w/ 1DPC) RDIMM DDR5 4400 MT/s (2DPC)
- Capacity
- Up to 2TB RDIMM DDR5-5600 memory
- Memory channel
- (8) Channels per CPU
- Memory voltage
- 1.1V
Chipset
- Peripheral Controller
- C741 PCH
Storage
- Internal (# / Interface)
- (2) NVMe M.2 2280 slots
- Connector (SATA)
- (3) SFF-8643 (MiniSAS HD) + (2) 7-pin SATA
- Connector (PCIe)
- (8) MCIO 4x
- RAID Level (SATA)
- RAID 0/1/10/5 (Intel RSTe)
PCIe Expansion Slots
- PCIe
- (1) PCIe Gen 5 x28 riser slot (1) PCIe Gen 5 x24 riser slot
- OCP
- (1) v3.0 mezz. slot
Internal I/O Ports & Headers
- Power
- (1) 24-pin + (2) 8-pin conn. (ATX)
- Front Panel
- (1) 24-pin header (SSI)
- Fan
- (6) 4-pin headers (2x CPU; 4x system)
- USB
- (1) Type A conn. (USB 2.0) (1) 20-pin header (USB 3.2 Gen 1)
- COM
- (1) 10-pin header
- TPM
- (1) 11-pin header
- SGPIO
- (1) 10-pin headers
- SMBus
- (1) 7-pin headers
- IPMB
- (1) 4-pin header
- PSMI
- (1) 5-pin header
- Intel VROC HW Key
- (1) 4-pin header (for Intel VROC NVMe RAID)
Rear Panel
- Buttons
- (1) UID
Rear I/O Ports
- USB
- (2) USB 3.2 Gen 1 ports
- VGA
- (1) D-sub 15-pin port
- RJ-45 (Data)
- -
- COM
- (1) DB-9 COM port
- RJ-45 (IPMI)
- (1) GbE port dedicated for IPMI
Networking
- Controller
- -
- PHY
- Realtek RTL8211FD-CG
TPM (Optional)
- TPM Support
- Please refer to our TPM supported list.
- Interface
- SPI
Graphic
- Connector type
- D-Sub 15-pin
- Resolution
- Up to 1920x1200
- Chipset
- Aspeed AST2600
System Monitoring
- Chipset
- Aspeed AST2600
- Temperature
- Monitors temperature for CPU & memory & system environment
- Voltage
- Monitors voltage for CPU, memory, chipset & power supply
- LED
- Over temperature warning indicator / Fan & PSU fail LED indicator
BIOS
- Brand / ROM size
- AMI / 64MB
- Feature
- Hardware Monitor/ FAN speed control automatic/ Boot from USB device/ PXE via LAN/Storage / Console Redirection/ SMBIOS 3.7/ PnP/ Wake on LAN/ ACPI 6.5/ ACPI sleeping states S0, S5
Server Management
- Chipset
- Aspeed AST2600
- AST2600 iKVM Feature
- 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
- AST2600 IPMI Feature
- IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
Operating Environment
- Operating Temp.
- 10° C ~ 35° C (50° F~ 95° F)
- Non-operating Temp.
- -40° C ~ 70° C (-40° F ~ 158° F)
- In/Non-operating Humidity
- 85% (Operating humidity) 90% (Non-operating Humidity)
Regulation
- FCC/IC
- Class A
- CE
- Class A
- RCM
- Class A
- VCCI
- Class A
OS Compatibility
- OS supported list
- Please refer to our compatibility support lists
RoHS
- RoHS 2.0
- Yes
Package Contains
- Motherboard
- (1) S7136GMRE Motherboard
- Manual
- (1) Quick Installation Guide
- Others
- (1) OCP 3.0 Slide Rail (1) M.2 Card Latch (2) SATA 7-pin Cables (2) E1A Carriers (for XCC CPU) (2) E1B Carriers (for MCC CPU)
