M50FCP1UR212 Features:
- Chassis: 1U rack mount, 767x 438.5 x 43 mm (L x W x H)
- Processor:
- 2 5th/4th Gen Intel Xeon Scalable processors
- Socket-E LGA4677
- Up to 128 cores per server (5th Gen) / 120 cores per server (4th Gen)
- Up to 3 Intel® UPI 2.0 links per socket at 20 GT/s
- Up to 205W air cooled
- 2 5th/4th Gen Intel Xeon Scalable processors
- Max Memory: (16) + (16) DDR5 DIMMs slots @ 5600(5th Gen) / 4800(4th Gen) MT/s
- Networking:
- 1 1000Base-T dedicated IPMI port
- 1 x OCP v3 slot (network adapter sold separately, for 400Gbps network card)
- Storage:
- 12 x 2.5" hot-swap SAS/SATA/NVMe (12-SFF)
- 2 M.2 SATA/PCIe 80/110mm connectors (onboard)
- PCIe slots:
- 2 low-profile (LP) x16 PCIe 5.0 / CLX 1.1 + 1 LP x8 PCIe 5.0 / CXL 1.1
Concurrent support for up to 4 riser cards: 1 PCIe Interposer riser card + up to 3 PCIe add-in cards.
- 2 low-profile (LP) x16 PCIe 5.0 / CLX 1.1 + 1 LP x8 PCIe 5.0 / CXL 1.1
- Power Supply: 1300W/1600W PSU, 80+ Titanium
Enterprise-Class Server Management:
- System Software (OpenBMC& BIOS)
- Redfish& IPMI 2.0 support
- (Optional) Advanced System Management Key (software license key)
- Intel® Data Center Manager (Intel® DCM)
Real-time health, inventory and firmware version management of many servers at once - Intel® Server Utilities
In-band and out-of-band debug and provisioning utilities - Aspeed AST2600 and Remote Management Processor
Security Support:
- Built-in Security Enhancements:
Intel Crypto Acceleration, Intel Software Guard Extensions (Intel® SGX), Intel Total Memory Encryption (Intel® TME), and Intel® Platform Firmware Resilience (Intel® PFR), and Converged Intel® Boot Guard and Trusted Execution Technology (Intel® TXT) - TPM 2.0 (Trusted platform module)
Built-in accelerators for data-intensive workloads
- Intel® Deep Learning Boost (Intel® DL Boost) with Intel® Advanced Matrix Extensions (Intel® AMX) to accelerate AI training and inferencing.
- Intel® Dynamic Load Balancer (Intel® DLB)
- Next Generation Intel® QuickAssist Technology (Intel® QAT)
- Intel® Data Streaming Accelerator (Intel® DSA)
- Intel® In-memory Analytics Accelerator (Intel® IAA)

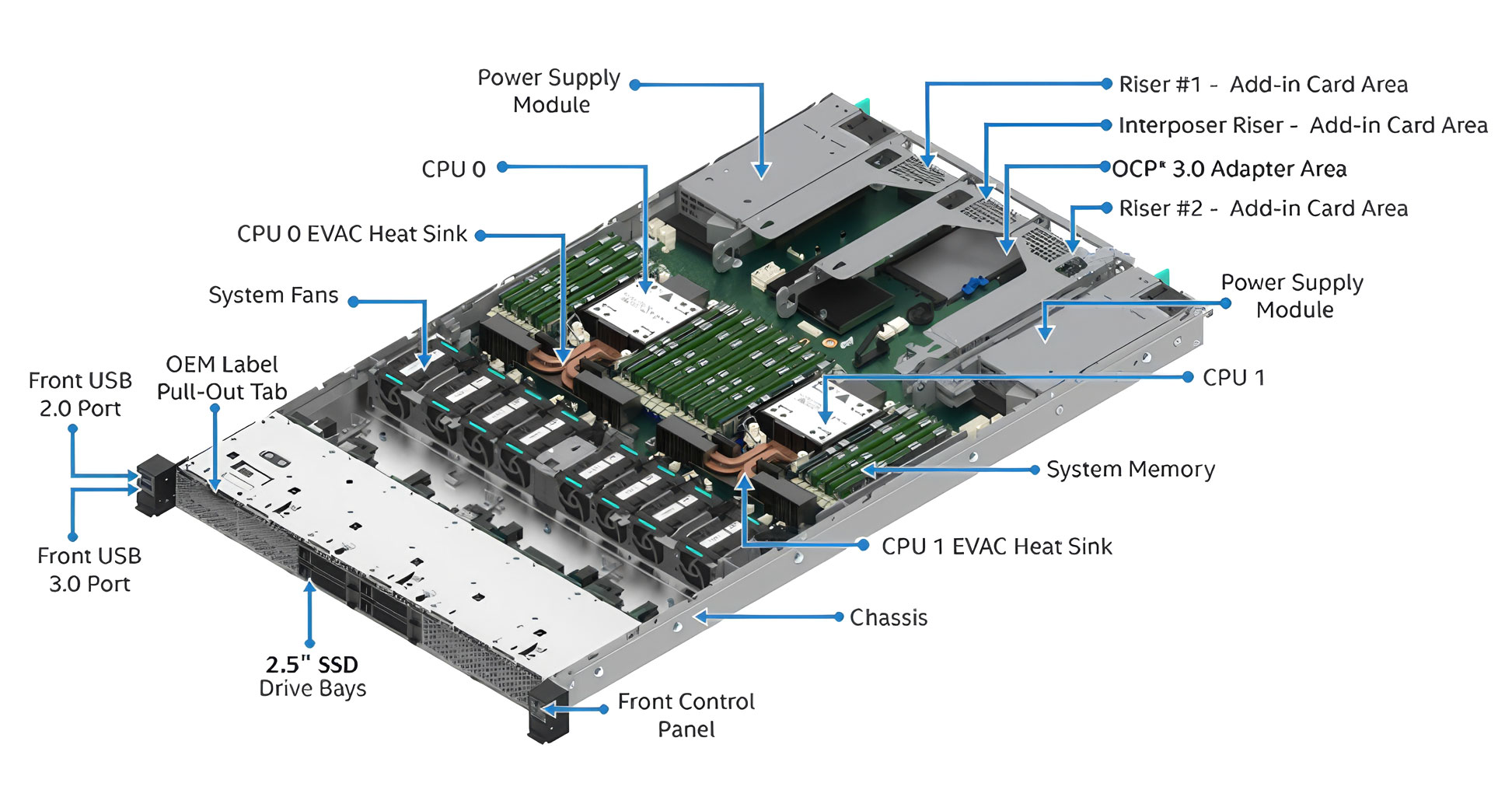

M50FCP1UR Server System Overview:

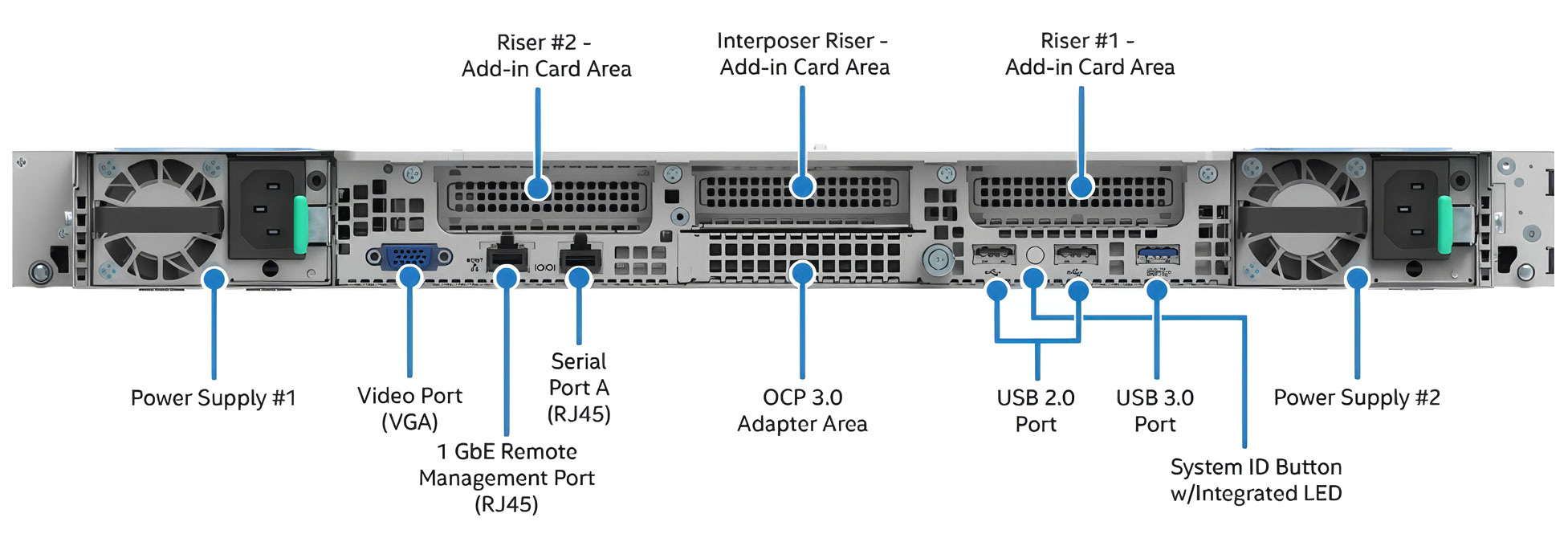

M50FCP1UR Server Back Panel:

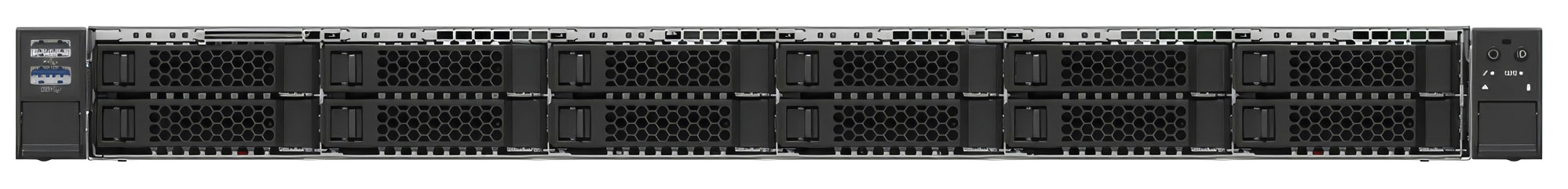

M50FCP1UR212 Server Front Panel (12 x 2.5" Drive Bay):

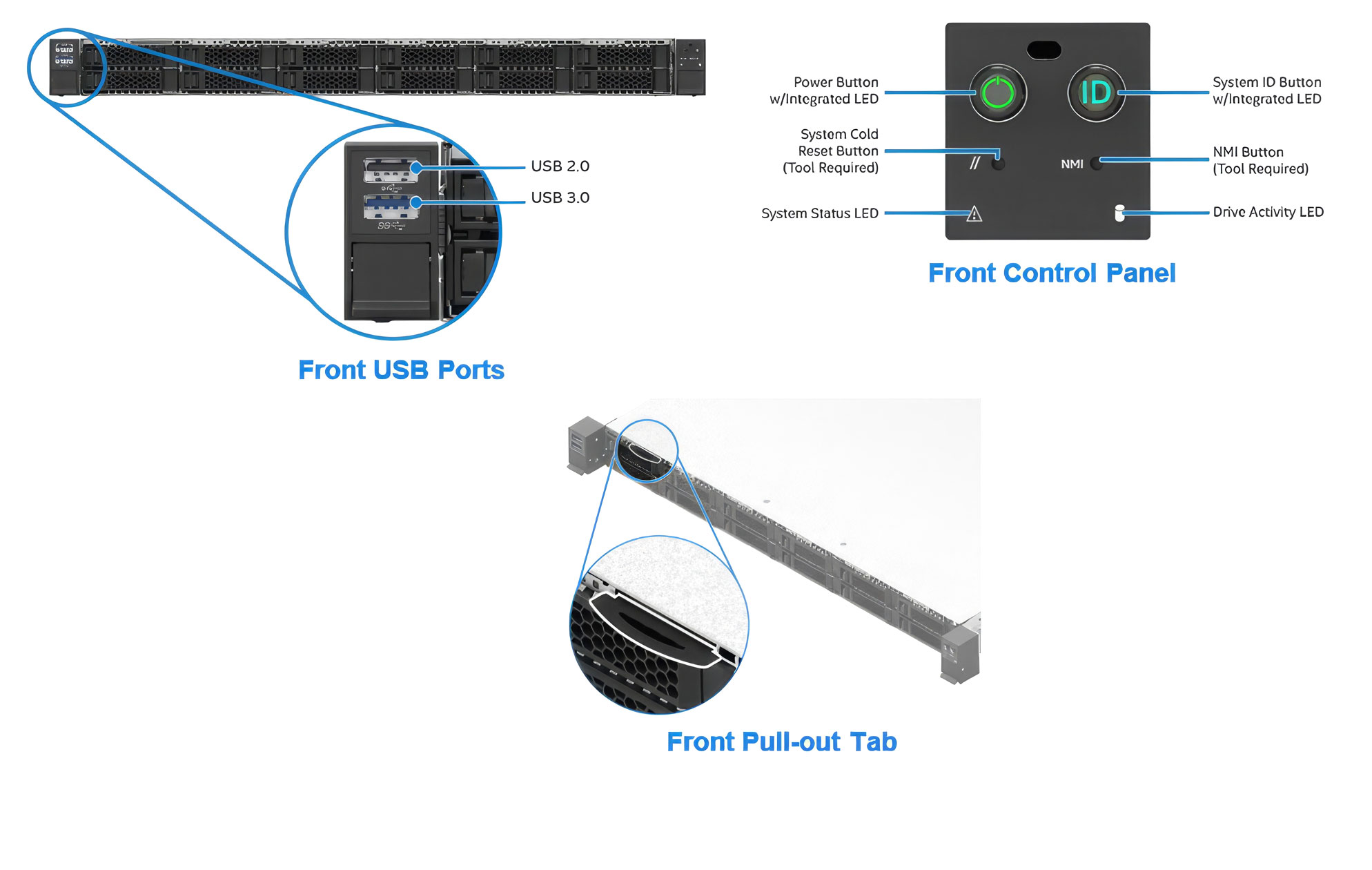

Front Panel Feature:

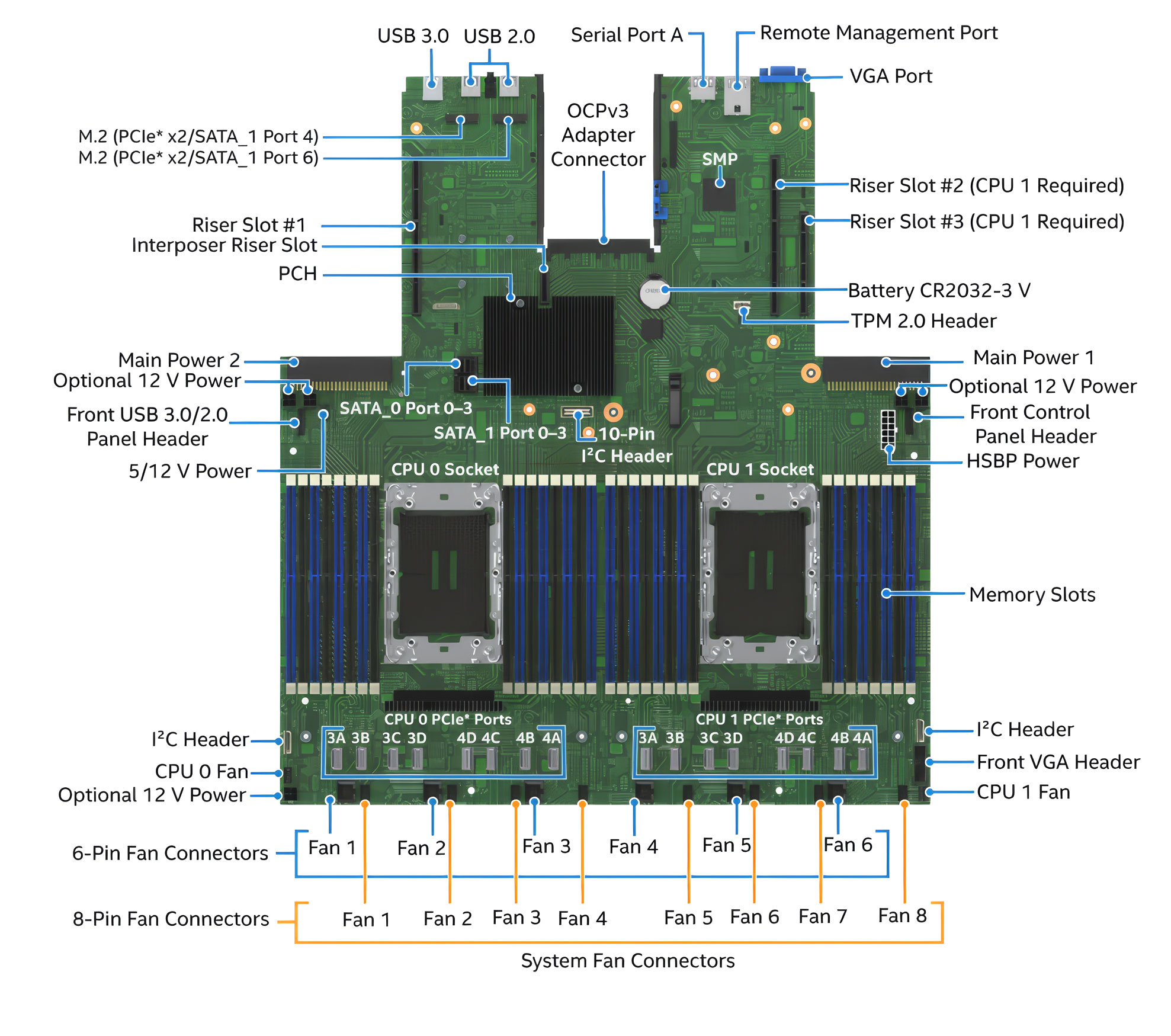

M50FCP1UR204 Server Board (M50FCP2SBSTD):
