M50FCP2UR312 Features:
- Chassis: 2U rack mount, 769.6 x 438 x 87 mm (L x W x H)
- Processor:
- 2 5th/4th Gen Intel Xeon Scalable processors
- Up to 128 cores per server (5th Gen) / 120 cores per server (4th Gen)
- Up to 3 Intel® UPI 2.0 links per socket at 20 GT/s
- Up to 350W air cooled
- 2 5th/4th Gen Intel Xeon Scalable processors
- Max Memory: (16) + (16) DDR5 DIMMs slots @ 5600(5th Gen) / 4800(4th Gen) MT/s
- Networking:
- 1 1000Base-T dedicated IPMI port
- 1 x OCP v3 slot (network adapter sold separately, for 400Gbps network card)
- Storage:
- 12 x 3.5"(LFF) hot-swap SAS/SATA (up to 4 NVMe)
- 2 internal 2.5" SSD above PSU
- 2 M.2 SATA/PCIe 80/110mm connectors (onboard)
- PCIe slots:
- Up to 8 PCIe 5.0 / CXL 1.1
(for 2x full-height, double-wide or 4x full-height 3/4 length single-wide GPGPU support)
- Up to 8 PCIe 5.0 / CXL 1.1
- Power Supply:
- 1600W PSU, 80+ Titanium
- 2100W PSU, 80+ Platinum
Enterprise-Class Server Management:
- System Software (OpenBMC& BIOS)
- Redfish& IPMI 2.0 support
- (Optional) Advanced System Management Key (software license key)
- Intel® Data Center Manager (Intel® DCM)
Real-time health, inventory and firmware version management of many servers at once - Intel® Server Utilities
In-band and out-of-band debug and provisioning utilities - Aspeed AST2600 and Remote Management Processor
Security Support:
- Built-in Security Enhancements:
Intel Crypto Acceleration, Intel Software Guard Extensions (Intel® SGX), Intel Total Memory Encryption (Intel® TME), and Intel® Platform Firmware Resilience (Intel® PFR), and Converged Intel® Boot Guard and Trusted Execution Technology (Intel® TXT) - TPM 2.0 (Trusted platform module)
Built-in accelerators for data-intensive workloads
- Intel® Deep Learning Boost (Intel® DL Boost) with Intel® Advanced Matrix Extensions (Intel® AMX) to accelerate AI training and inferencing.
- Intel® Dynamic Load Balancer (Intel® DLB)
- Next Generation Intel® QuickAssist Technology (Intel® QAT)
- Intel® Data Streaming Accelerator (Intel® DSA)
- Intel® In-memory Analytics Accelerator (Intel® IAA)

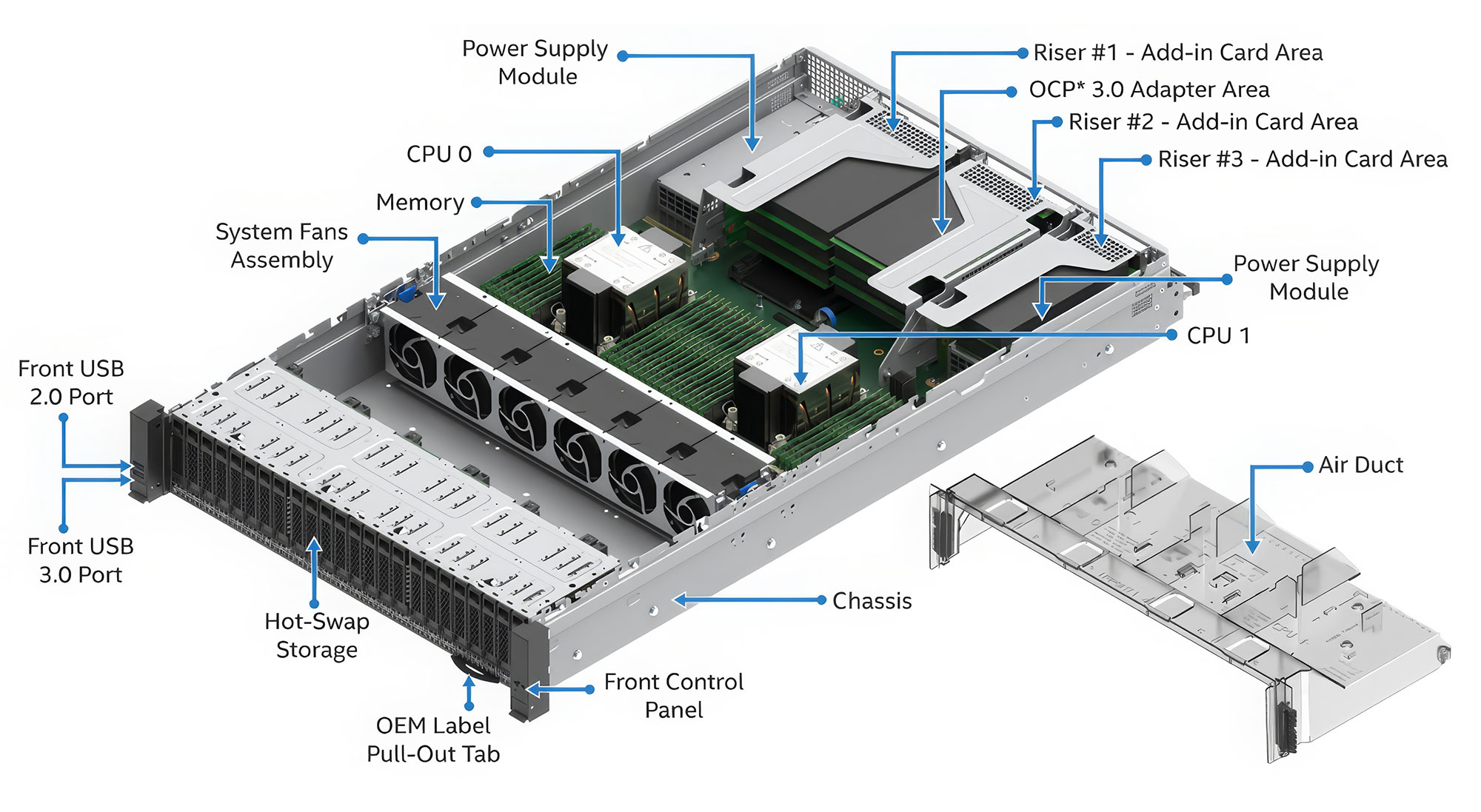

M50FCP2UR Server System Overview:

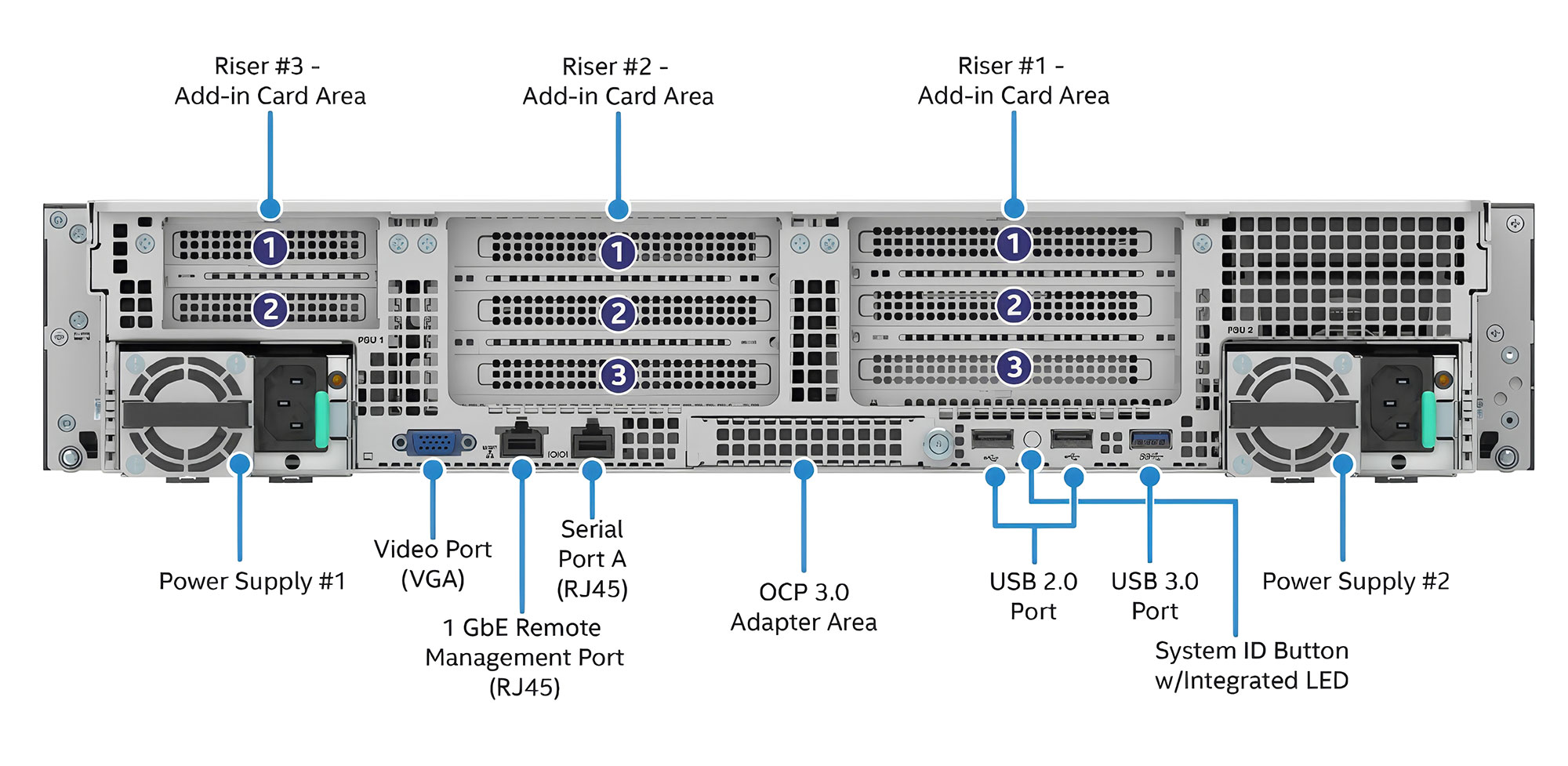

M50FCP2UR Server Back Panel:

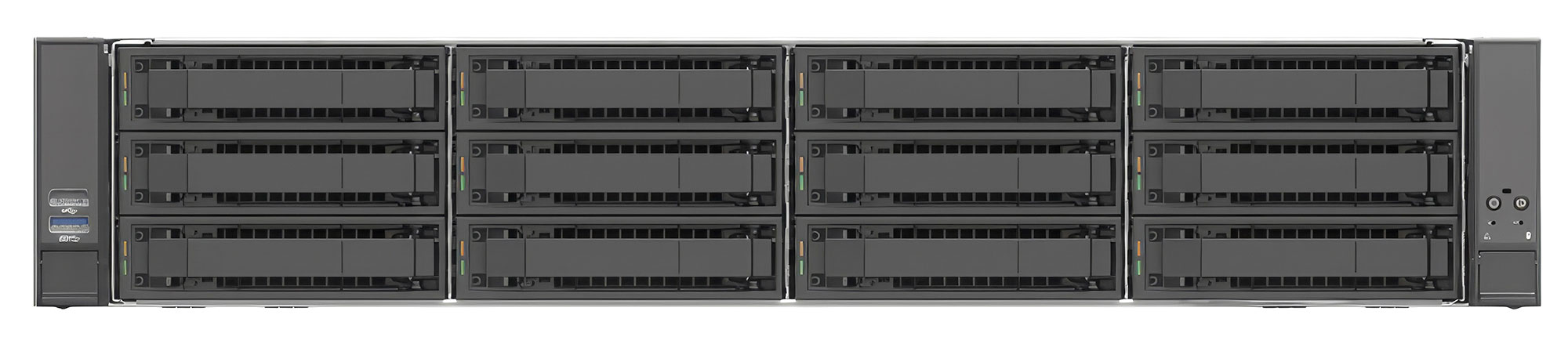

M50FCP2UR312 Server Front Panel (12 x 3.5" Drive Bay)

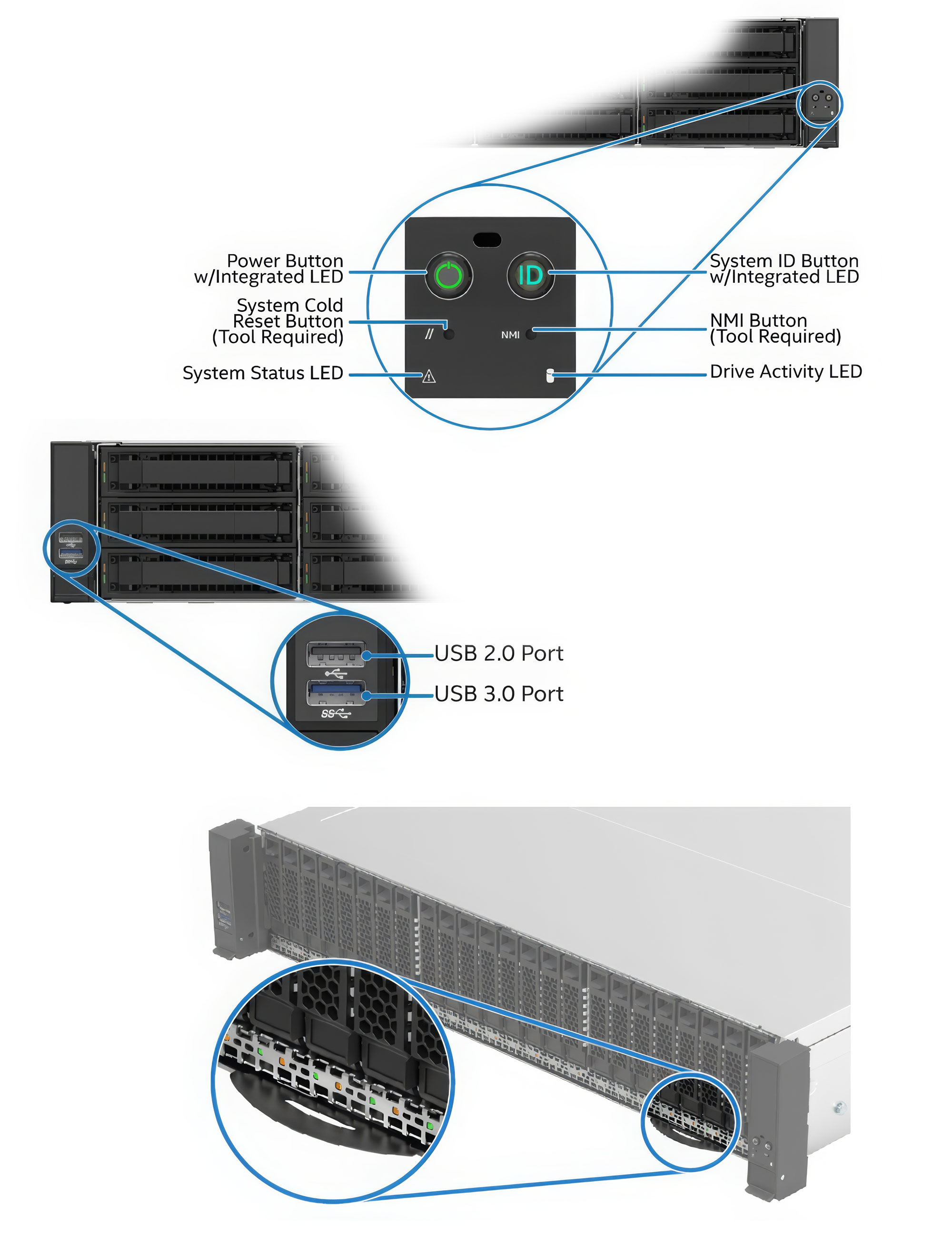

M50FCP2UR Front Panel Feature:

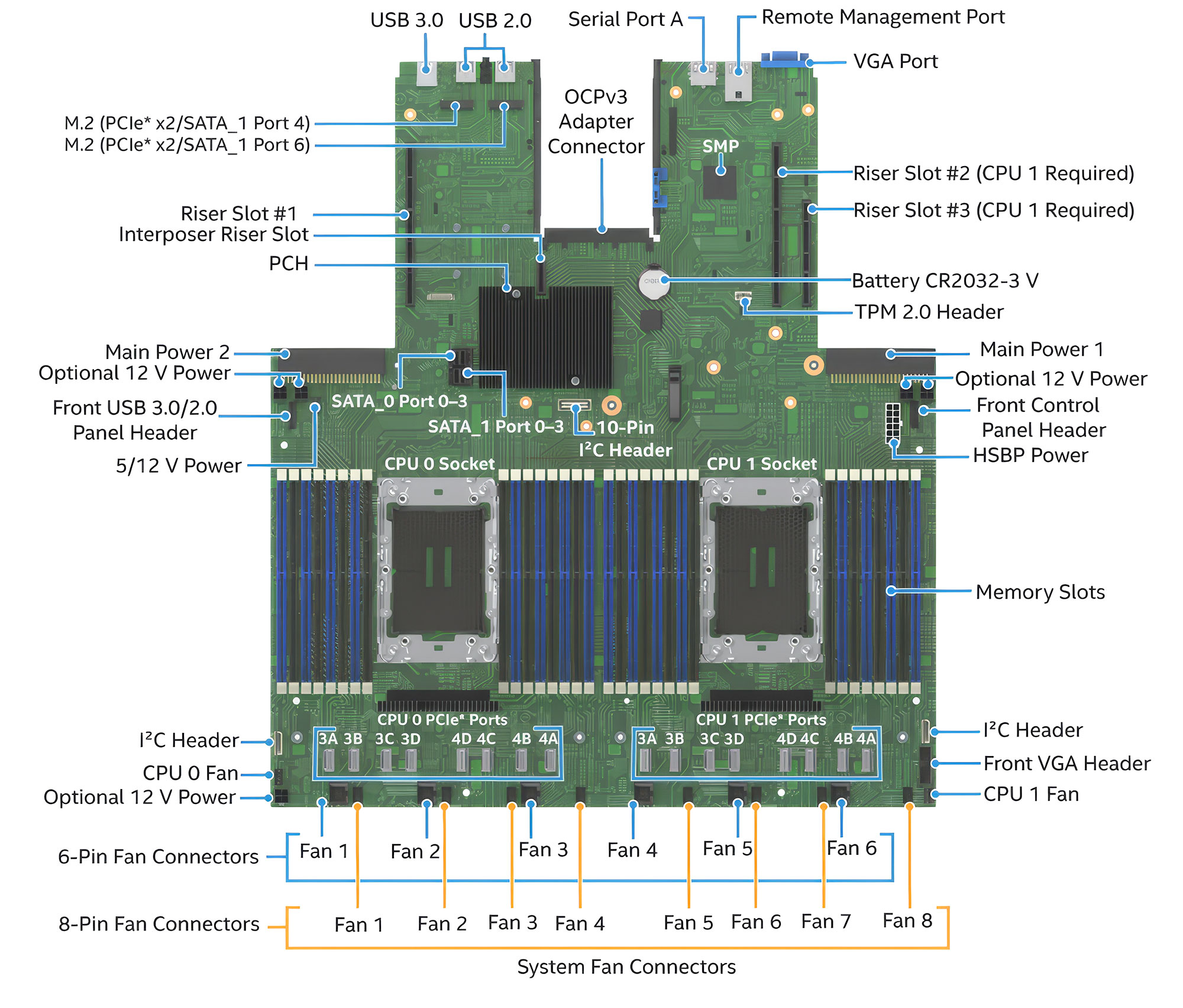

M50FCP2UR Server Board (M50FCP2SBSTD):
