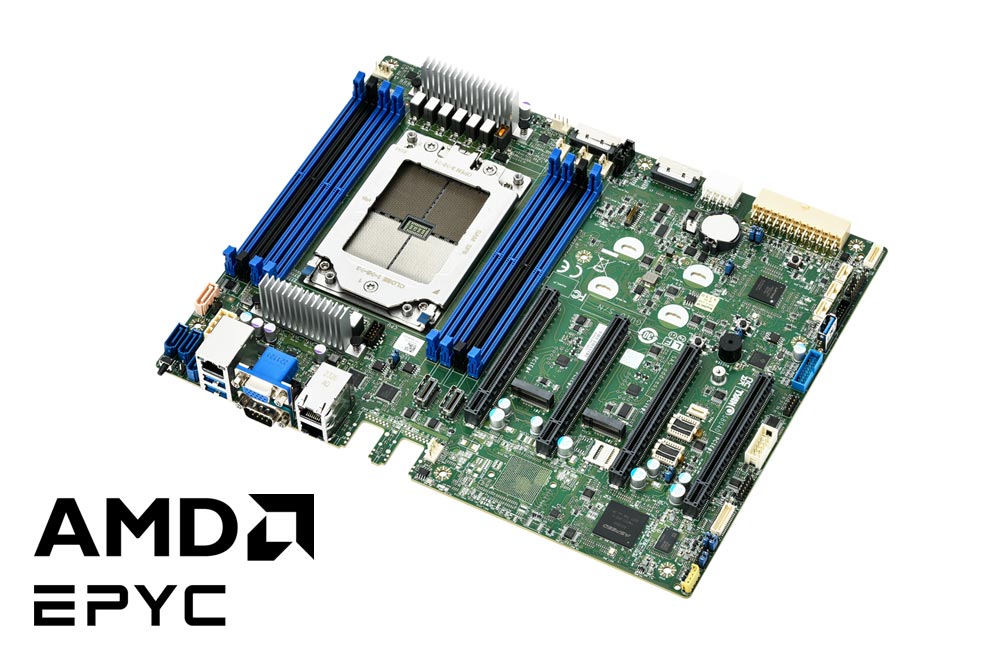

S8040
Compact 1S AMD EPYC Motherboard
- 1S AMD Siena CPU
- 12" x 9.6" ATX Form Factor
- 8 RDIMM slots with DDR5-4800 memory support
- 4 PCIe 5.0x16 slots
- 2 MCIO 8x + 2 MCIO 4x conn. (NVMe)
- 2 NVMe M.2 22110 / 2280 slots
- 2 10GBase-T + 2 1000Base-T LAN + 1 dedicate 1000Base-T IPMI ports
- AST2600 BMC with IPMI 2.0& Redfish support
| Processor Brand | CPUs | CPU Type | DIMM Slots | PCIe Slots |
|---|---|---|---|---|
| AMD - S8040GM2NE* | 1 | AMD EPYC™ 8005/8004 Series Processor | 8 | 4 |
| AMD - S8040GM4NE-2T* | 1 | AMD EPYC™ 8005/8004 Series Processor | 8 | 4 |
Specifications
Motherboard
- Board Dimension (W x L)
- ATX 12" x 9.6" (304.8 x 243.8mm)
Processor
- Q'ty / Socket Type
- (1) AMD Socket SP6
- Supported CPU Series
- AMD EPYC™ 8005/8004 Series Processor
- Thermal Design Power Wattage
- Max up to 225W (cTDP)
Memory
- Supported DIMM Qty
- (8) DIMM slots
- DIMM Type / Speed
- RDIMM DDR5 5200 MT/s (EPYC 8005 w/ 1DPC) RDIMM DDR5 4800 MT/s (EPYC 8004 w/ 1DPC) RDIMM DDR5 4400 MT/s (EPYC 8005 w/ 2DPC) RDIMM DDR5 3600 MT/s (EPYC 8004 w/ 2DPC)
- Capacity
- Up to 1TB RDIMM DDR5-6400 memory
- Memory channel
- (6) Channels per CPU
- Memory voltage
- 1.1V
Storage
- Internal (# / Interface)
- (2) NVMe M.2 2280/22110 slots
- Connector (SATA)
- (4) 7-pin SATA
- Connector (PCIe)
- (2) MCIO 8x + (2) MCIO 4x
PCIe Expansion Slots
- PCIe
- (4) PCIe Gen 5 x16 slots
Internal I/O Ports & Headers
- Power
- (1) 24-pin + (2) 8-pin conn. (ATX)
- Front Panel
- (1) 24-pin header (SSI)
- Fan
- (6) 4-pin headers (1x CPU; 5x system)
- USB
- (1) Type A conn. (USB 3.2 Gen 1) (1) 20-pin header (USB 3.2 Gen 1)
- COM
- (1) 10-pin header
- VGA
- (1) 14-pin header
- TPM
- (1) 11-pin header
- SGPIO
- (1) 10-pin headers
- SMBus
- (3) 7-pin headers
- IPMB
- (1) 4-pin header
- PSMI
- (1) 5-pin header
Rear Panel
- Buttons
- (1) UID
Rear I/O Ports
- USB
- (2) USB 3.2 Gen 1 ports
- VGA
- (1) D-sub 15-pin port
- RJ-45 (Data)
- (2) 10GbE + (2) GbE ports
- COM
- (1) DB-9 COM port
- RJ-45 (IPMI)
- (1) GbE port dedicated for IPMI
Networking
- Controller
- (1) Intel X710-AT2 + (2) Intel i210-AT
- PHY
- Realtek RTL8211FD-CG
TPM (Optional)
- TPM Support
- Please refer to our TPM supported list.
- Interface
- SPI
Graphic
- Connector type
- D-Sub 15-pin
- Resolution
- Up to 1920x1200
- Chipset
- Aspeed AST2600
System Monitoring
- Chipset
- Aspeed AST2600
- Temperature
- Monitors temperature for CPU & memory & system environment
- Voltage
- Monitors voltage for CPU, memory, chipset & power supply
- LED
- Over temperature warning indicator / Fan & PSU fail LED indicator
BIOS
- Brand / ROM size
- AMI / 32MB
- Feature
- Hardware Monitor/ FAN speed control automatic/ Boot from USB device/ PXE via LAN/Storage / Console Redirection/ SMBIOS 3.7/ PnP/ Wake on LAN/ ACPI 6.5/ ACPI sleeping states S0, S5
Server Management
- Chipset
- Aspeed AST2600
- AST2600 iKVM Feature
- 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
- AST2600 IPMI Feature
- IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
Operating Environment
- Operating Temp.
- 10° C ~ 35° C (50° F~ 95° F)
- Non-operating Temp.
- -40° C ~ 70° C (-40° F ~ 158° F)
- In/Non-operating Humidity
- 85% (Operating humidity) 90% (Non-operating Humidity)
Regulation
- FCC/IC
- Class A
- CE
- Class A
- RCM
- Class A
- VCCI
- Class A
OS Compatibility
- OS supported list
- Please refer to our compatibility support lists
RoHS
- RoHS 2.0
- Yes
Package Contains
- Motherboard
- (1) S8040GM4NE-2T Motherboard
- Manual
- (1) Quick Installation Guide
- Others
- (1) I/O Shield (2) SATA 7-pin Cables
